SHARK 440 SERIES: DT | ET | EM | E
There are some undisputed features that differentiate the Tana Shark low-speed shredders from other products on the market. Versatility is the key word in design as special attention has been paid to the machine’s capability to shred most materials and produce a wide range of particle size. The Shark is available both as a diesel-driven and electric version. When movement is required, the mobile version is an obvious choice whereas the stationary version may be fitted e.g. into a larger recycling line.
For more information visit: https://tananorthamerica.com/tana-products/tana-shredders/
TANA Shark and Hammerhead shredders are built to help waste and recycling operations get more value from every ton processed. Engineered for tough daily use, they combine reliable performance, smart process control, and practical service access to keep material moving with less downtime. From volume reduction to fuel production and recyclable material recovery, TANA shredders give operators the control, durability, and production confidence needed to improve efficiency and support stronger bottom-line results.
Video Gallery
Low Speed Shredder PRODUCTS

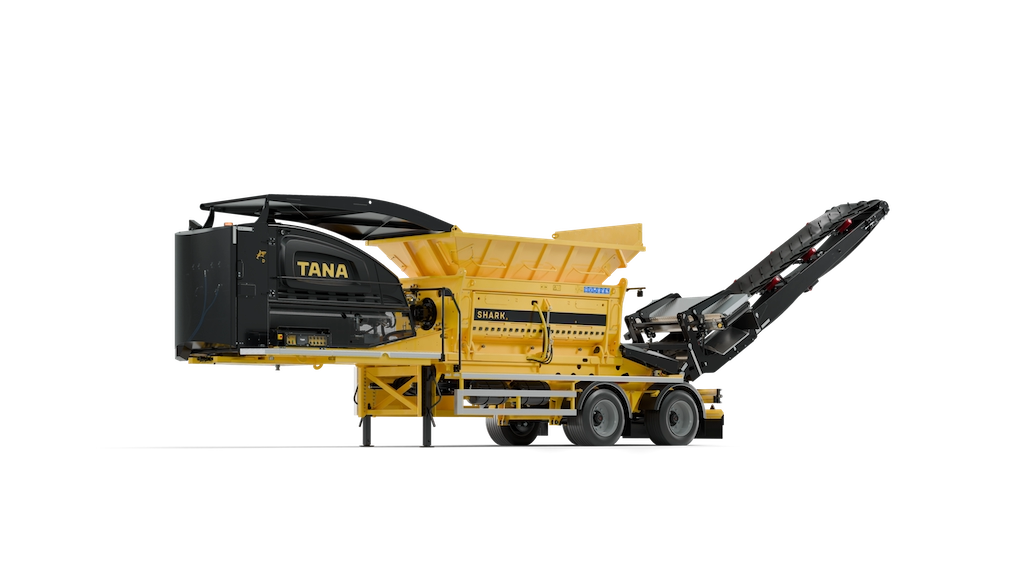

Shark D
Shark D is a diesel powered, semi trailer TANA shredder built for tough material streams, including tires, ragger wire, waste wood, plastics, MSW, C&I, and C&D. Its high torque Shark rotor delivers 324,530 ft lbs of total torque at 28 rpm, with TCS controls, screen options, and easy service access.

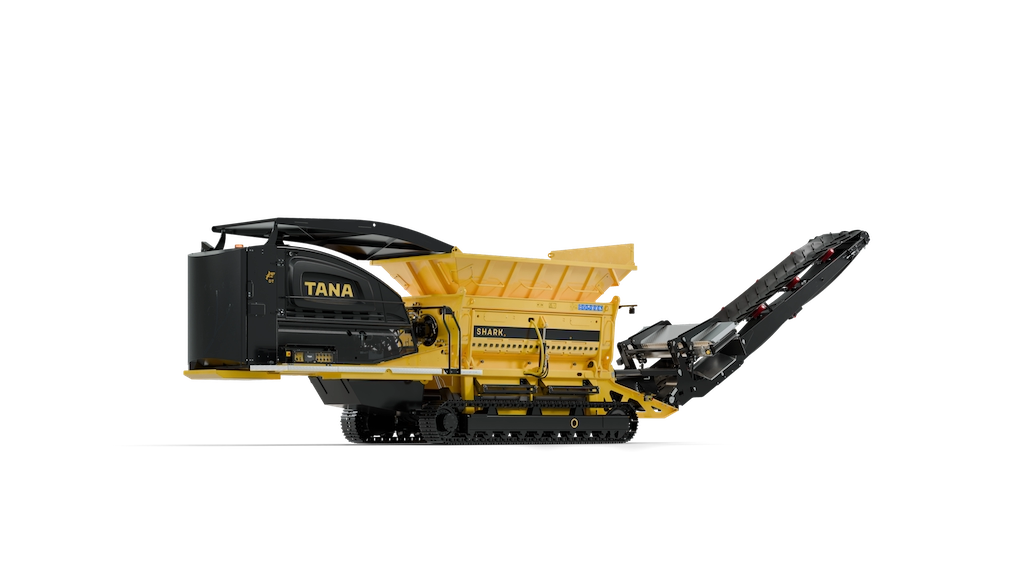

Shark DT
Shark DT brings the high torque Shark shredding package onto a tracked platform for sites needing frequent repositioning. Powered by a Cummins X15 diesel engine, it offers 324,530 ft lbs of total rotor torque, 28 rpm maximum speed, a 9 ft 10 in shredding length, TCS presets, and rugged serviceability.

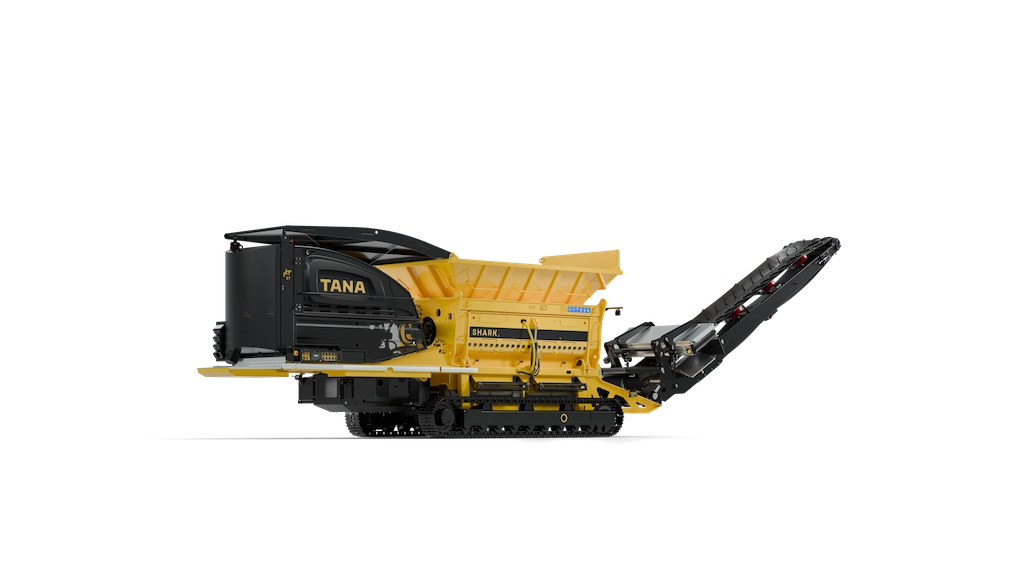

Shark ET
Shark ET combines tracked mobility with electric power for operators wanting high torque shredding and lower onsite engine emissions. Its VEM IE4 drive supplies the Shark rotor system with 324,530 ft lbs of total torque, 28 rpm speed, 480 volt service, integrated TCS control, and flexible screens for consistent sizing.

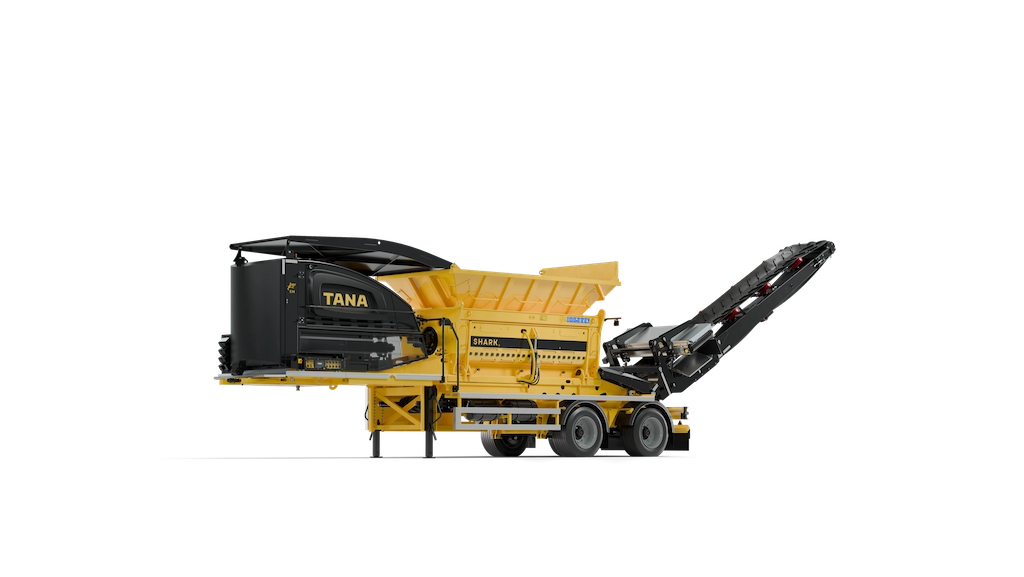

Shark EM
Shark EM is the electric version of the Shark platform, suited to facilities wanting movable placement with grid powered operation. It uses a VEM IE4 motor, 480 volt supply, and 630 amp fuse size, while retaining 324,530 ft lbs of torque, 28 rpm rotor speed, screening choices, and TanaConnect monitoring.

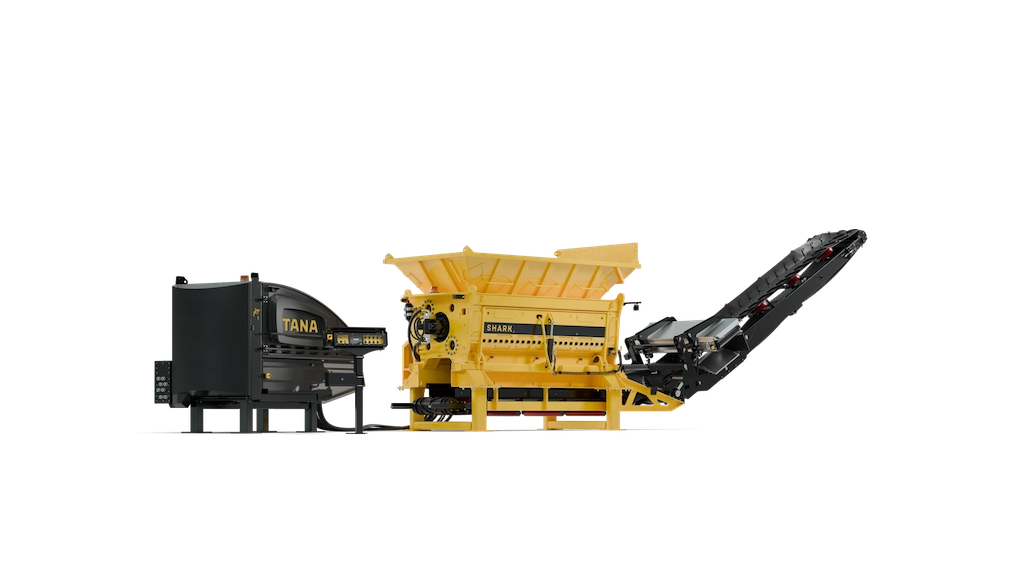

Shark E
Shark E is the stationary electric Shark shredder for fixed processing lines where compact installation and continuous powered operation matter. At 18 ft 11 in long, it keeps the 9 ft 10 in rotor shredding length, 324,530 ft lbs of torque, 28 rpm Shark rotor, TCS controls, and screen sizing.

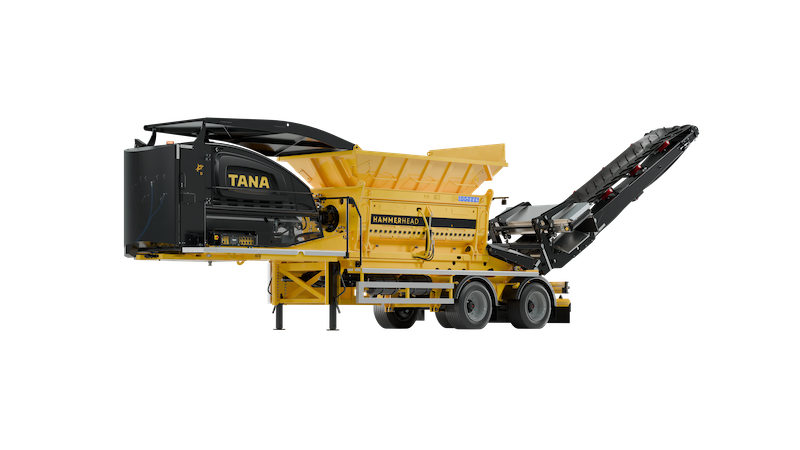

Hammerhead D
Hammerhead D is a diesel powered semi trailer shredder designed for high throughput applications that benefit from faster rotor speed. It uses the Hammerhead rotor package with 228,700 ft lbs of total torque and 40 rpm speed, supported by TCS controls, shaft construction, overband magnet options, screens, and maintenance access.

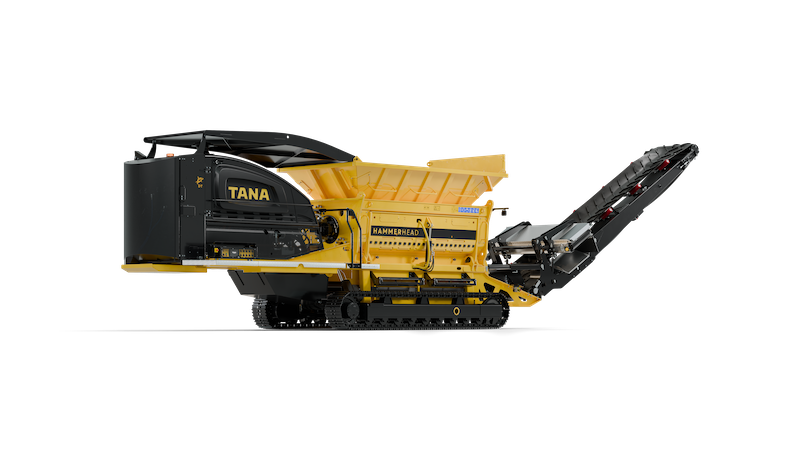

Hammerhead DT
Hammerhead DT places the faster Hammerhead shredding configuration on tracks for mobile job sites and changing material piles. Its Cummins X15 diesel engine powers a 40 rpm rotor system with 228,700 ft lbs of torque, a 9 ft 10 in shredding length, adjustable screens, TCS presets, and a rugged frame.

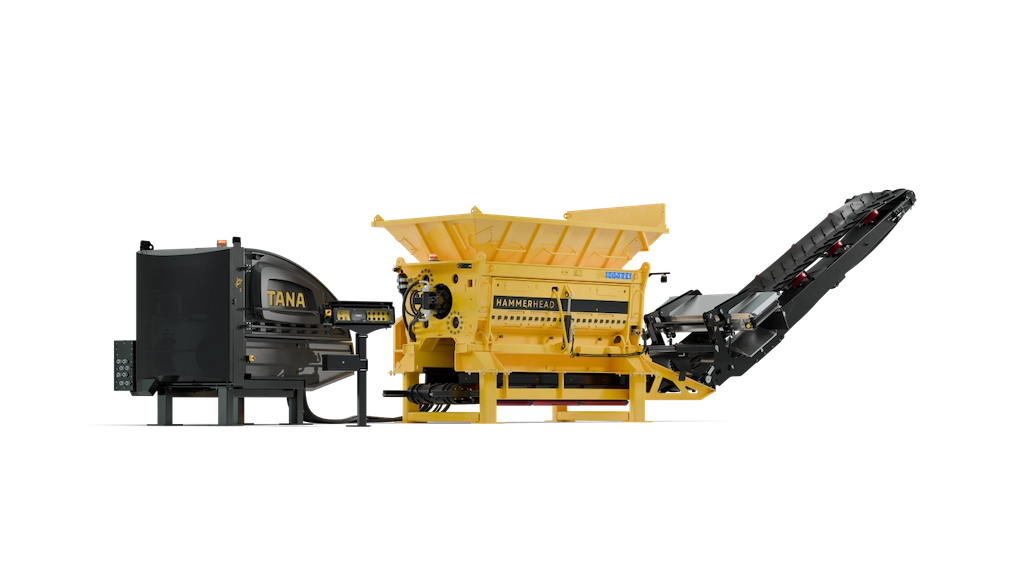

Hammerhead E
Hammerhead E is the stationary electric Hammerhead shredder for fixed facilities prioritizing fast rotor processing in a compact footprint. Measuring 18 ft 11 in long, it delivers 228,700 ft lbs of total torque, 40 rpm rotor speed, 9 ft 10 in shredding length, TCS control, TanaConnect data, and configurable screens.

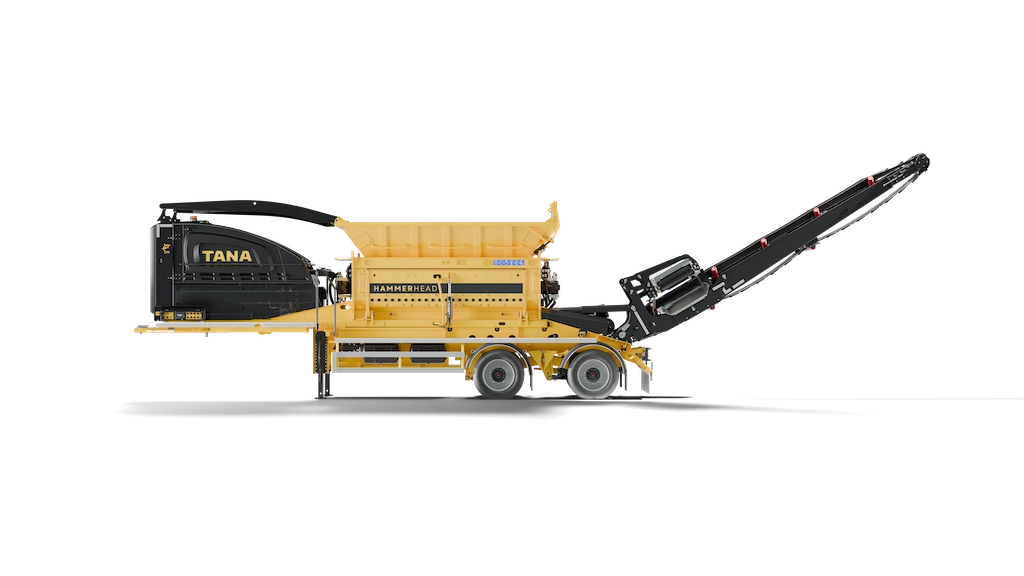

Hammerhead EM
Hammerhead EM is the semi trailer Hammerhead model, built for operations wanting relocatable equipment without diesel operation. It combines VEM IE4 electric drive, 480 volt supply, and 630 amp fuse size with 228,700 ft lbs of torque, 40 rpm rotor speed, TCS controls, selectable screens, magnet capability, and service access.

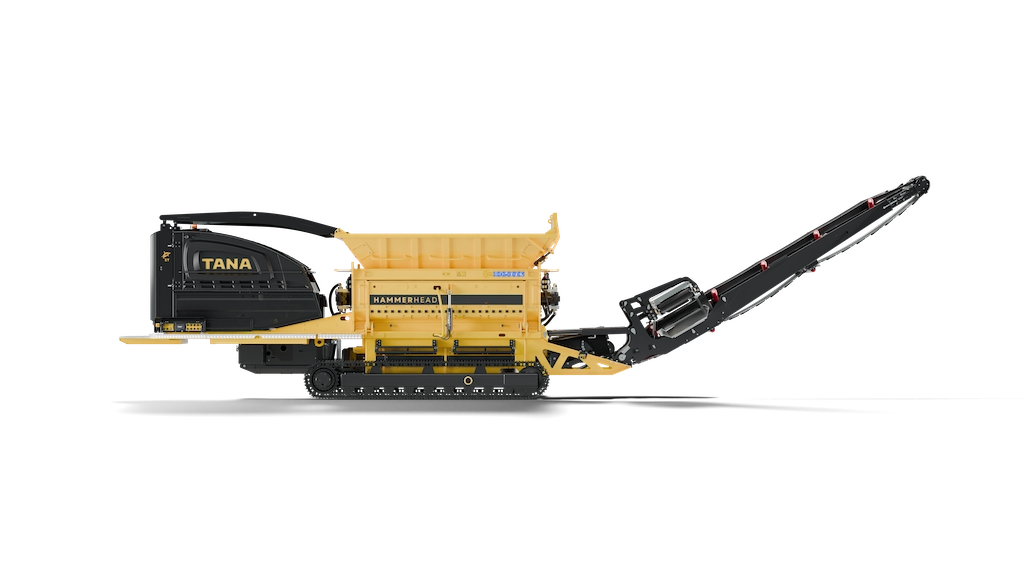

Hammerhead ET
Hammerhead ET pairs tracked mobility with electric power, giving operators a fast rotor shredder for sites with electrical supply. The VEM IE4 system runs on 480 volts with a 630 amp fuse size, delivering 228,700 ft lbs of total torque, 40 rpm speed, TCS optimization, TanaConnect visibility, and output control.
Designed to improve your bottom line.
Tana Shark Low Speed Shredders
- Shark D
- Shark DT
- Shark ET
- Shark EM
- Shark E
- Hammerhead D
- Hammerhead DT
- Hammerhead ET
- Hammerhead EM
- Hammerhead E
Engine: Cummins X15, Fulfills Tier 4 Final, EU Stage V
Torque Rating: 324,530 ft-lbs / 440 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Trailer
Engine: Cummins X15, Fulfills Tier 4 Final, EU Stage V
Torque Rating: 324,530 ft-lbs / 440 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Tracks
Engine: VEM, IE4
Torque Rating: 324,530 ft-lbs / 440 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Tracks
Engine: VEM, IE4
Torque Rating: 324,530 ft-lbs / 440 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Trailer
Engine: VEM, IE4
Torque Rating: 324,530 ft-lbs / 440 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Stationary
Engine: Cummins X15, Fulfills Tier 4 Final, EU Stage V
Torque Rating: 228,700 ft-lbs / 310 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Trailer
Engine: Cummins X15, Fulfills Tier 4 Final, EU Stage V
Torque Rating: 228,700 ft-lbs / 310 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Tracks
Engine: VEM, IE4
Torque Rating: 228,700 ft-lbs / 310 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Tracks
Engine: VEM, IE4
Torque Rating: 228,700 ft-lbs / 310 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Trailer
Engine: VEM, IE4
Torque Rating: 228,700 ft-lbs / 310 kNm
Rotor Knives: 33 / 44 Option
Counter Knives: 23
Set Up: Stationary
